Description

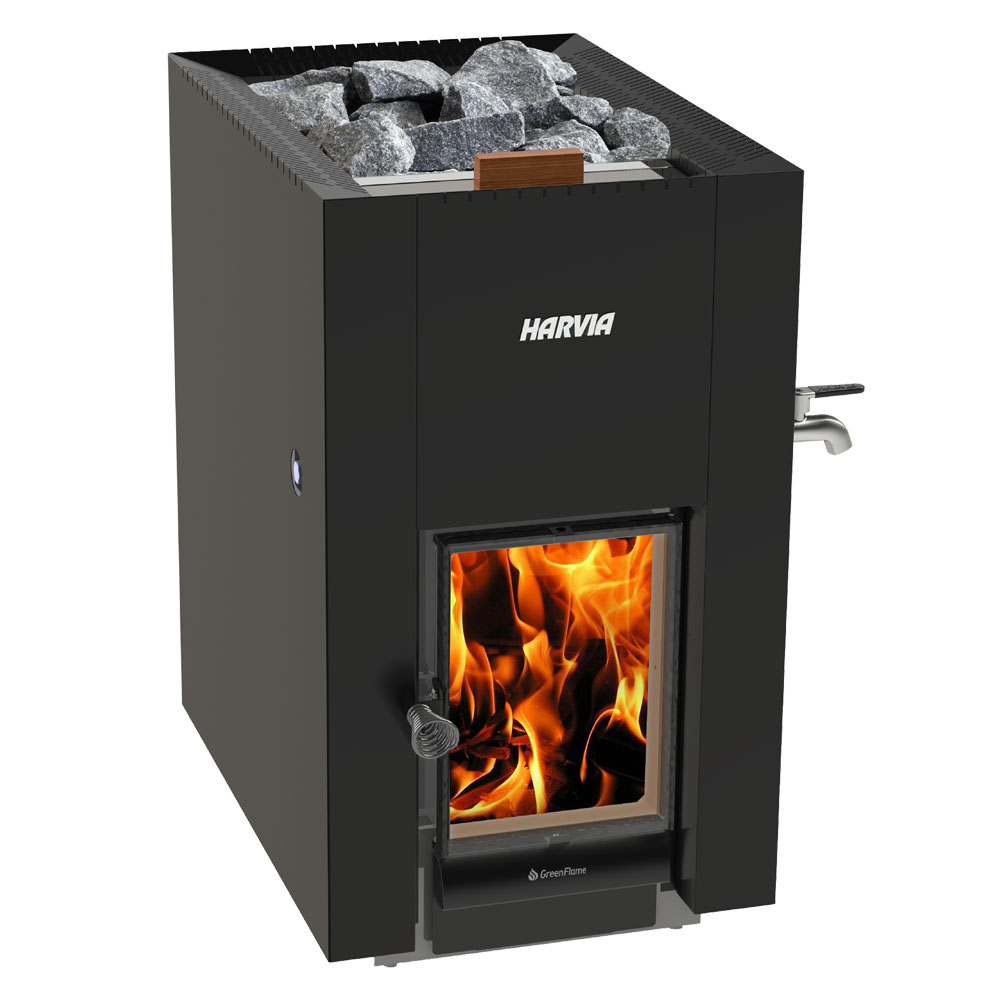

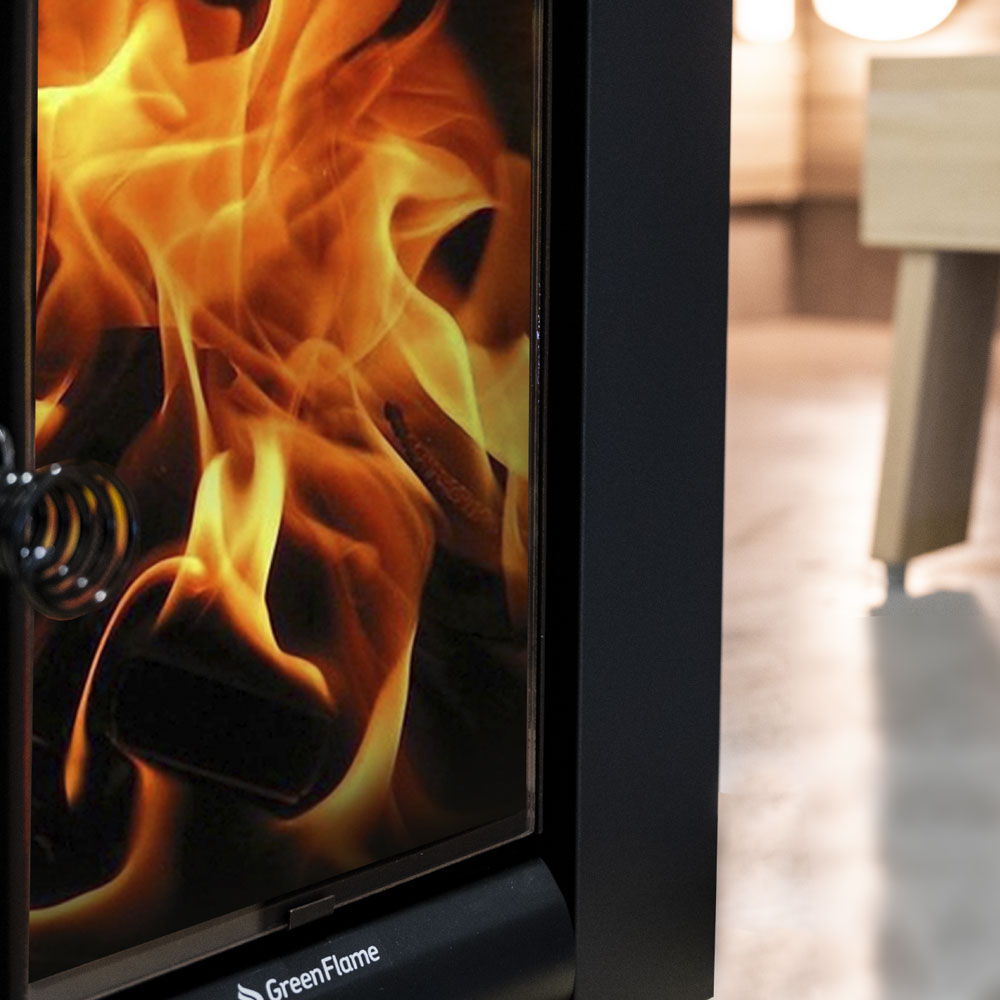

The Linear series puts the fire on show: a wide cast-iron-framed glass door with the combustion air channels arranged so the glass stays clear instead of sooting over in the first hour. Double-shell steel construction keeps the outer surface cooler, which is what allows the tight clearances in a small room.
GreenFlame chamber. A controlled-burn firebox: Harvia measures 20% fewer particulates and 70% less carbon monoxide than the standard chamber, and the slower, more complete burn is easier on the stove itself. Worth having anywhere wood-burning appliances are regulated.
Water tank, front (ES). A 20-litre tank on the face of the stove gives hot water off the same fire — the cottage arrangement, where the sauna also supplies the washing water.
Sizing: 15.7 kW, rated by Harvia for sauna rooms of 318–636 cu ft. Measure the room, not the bench.
Stones: choose above. Harvia’s minimum for this stove is 2 boxes of the 4–6 in fraction. Pick Included and they travel on the same pallet as the stove; pick Not included if you already have stone or would rather source it locally.
The minimum is a minimum, not a suggestion — an under-filled stove runs hot and loud and gives thin steam. If you are stacking it yourself, order one spare box of AC3020: natural stone varies in shape, and the spare is what lets you sort for a loose, well-packed pile.
Chimney: a wood-burning stove needs a UL-listed class-A chimney sized to its flue collar, installed to local code. We do not supply Harvia flue parts — plan that with your installer before the stove arrives.
Specifications
- Power: 15.7 kW
- Fuel: wood
- Dimensions: 17.7″W × 26″D × 30″H
- Weight: 167.6 lb
Frequently asked questions
Does the Harvia Linear 22 GreenFlame ES need electricity?
No — it is a wood-burning stove. It needs a chimney connection, but no wiring and no electric control.
Do I need to buy anything else?
Yes — 2 boxes of sauna stones (add them in the option above, or source them locally) and a compatible chimney/flue.
What each option includes
- Add 2 boxes (4–6 in) — +$138 — 2 boxes of Harvia AC3020 olivine diabase, 4–6 in, 44 lb each — the charge Harvia specifies for this stove, shipped on the same pallet.
- Not included — Stove only. This stove needs stones to run — see the note in the description.
